Music Hall – Mini – Phono PreAmplifier

Music Hall – Mini – Phono PreAmplifier

The Music Hall Mini is a solid-state moving magnet phono premap for use with moving magnet and high output moving coil cartridges. The mini is designed to amplify an RIAA equalized phono signal to a high level signal. The music hall mini is cheap, cheerful, and built in the USA.

FEATURES:

• RIAA equalization +/- 1.5 dB, 20Hz to 20kHz
• steel chassis

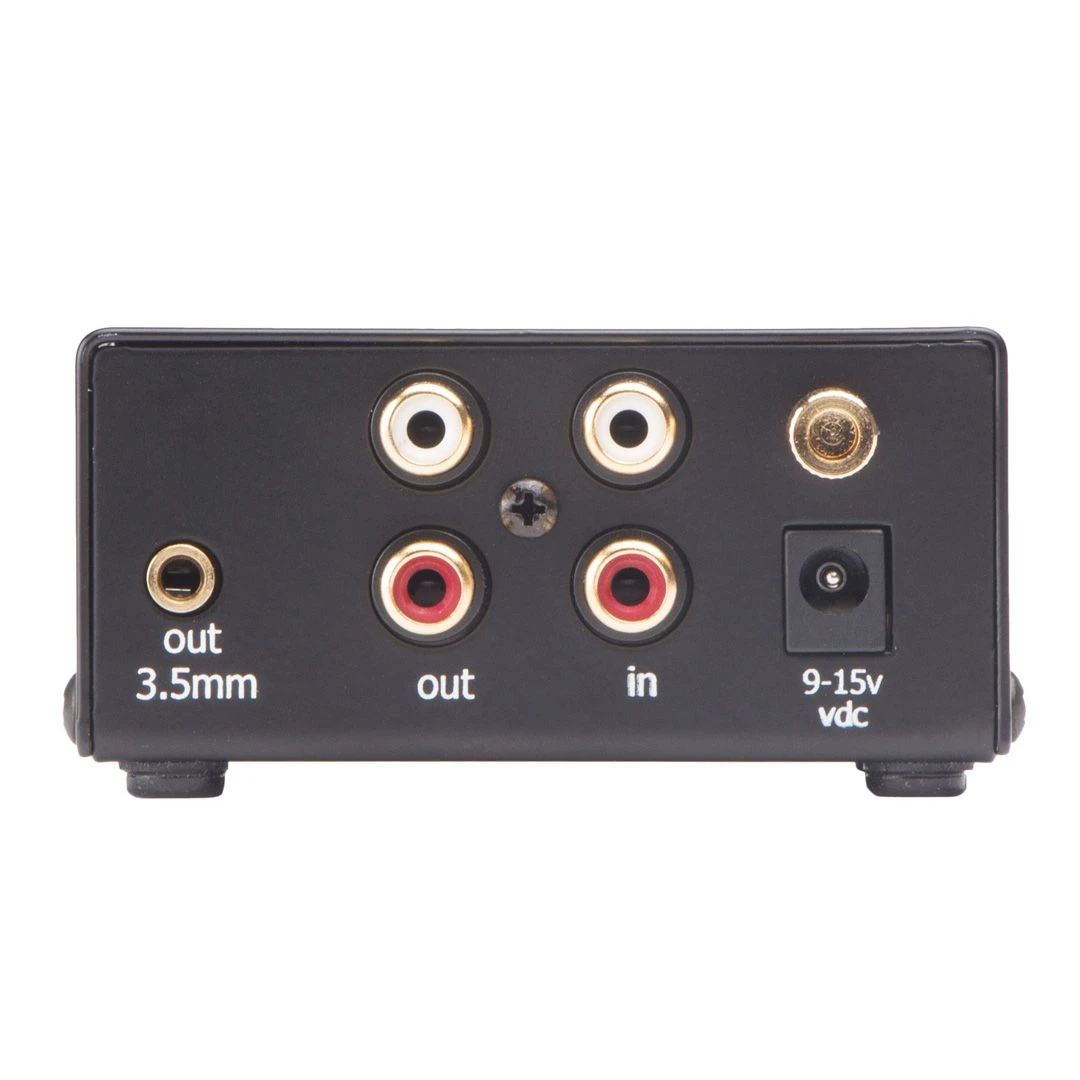

• i/o connectors: rca, 3.5mm trs stereo
• I/ O Connectors: RCA, 1/8″ TRS Stereo
• Input Sensitivity: 42 dB gain 1kHz, 47k Ohms
• Input Capacitance: 120pf
• Sensitivity: 5mV for 635mV output
• Input Impedance: 50k Ohms
• Output Impedance: 1K Ohms
• Frequency Response: + / – .5 dB 20 Hz – 20 kHz
• (Conforms to RIAA Equalization Curve)
• THD .01% @ 1 kHz
• S/N Ratio: >83 dB unweighted
• PWR: 9 – 15 VDC
• Size: 3.25 x 2 x 1.5
• Weight – 1.0 lbs
