SVS – Ultra Center Channel Speaker (Single)

SVS – Ultra Center Channel Speaker (Single)

SVS Ultra Center – The Foundation For High-End Home Theaters

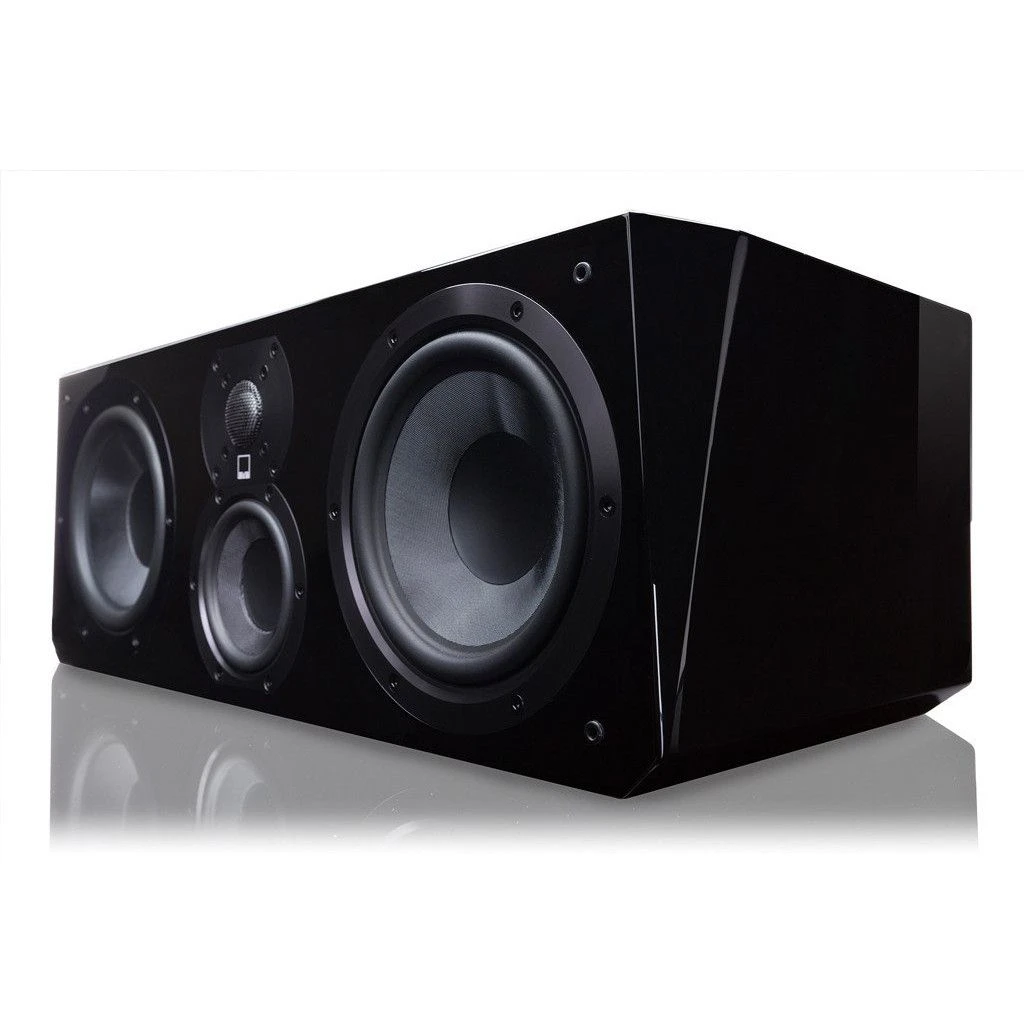

The Ultra Center anchors the front stage and immerses the listener in the cinema experience, effortlessly handling the most complex and dialogue-intensive scenes with stunning realism, room-filling presence and outstanding vocal reproduction and dialogue intelligibility. Available in premium-grade piano gloss black and real black oak veneer finishes and handsomely styled with a swept back profile and striking edge treatments, the Ultra Center will complement any high-end home theater.

Dramatic Styling Yields Sonic Benefits
The Ultra Center cabinet design yields numerous sonic benefits. The non-parallel cabinet panels reduce standing waves within the cabinet, effectively eliminating frequency response coloration. The wedge-shaped front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response. Even the grille design is FEA-optimized to maximize acoustic transparency.

SVS Drivers – Extreme Performance and Uncompromised Fidelity

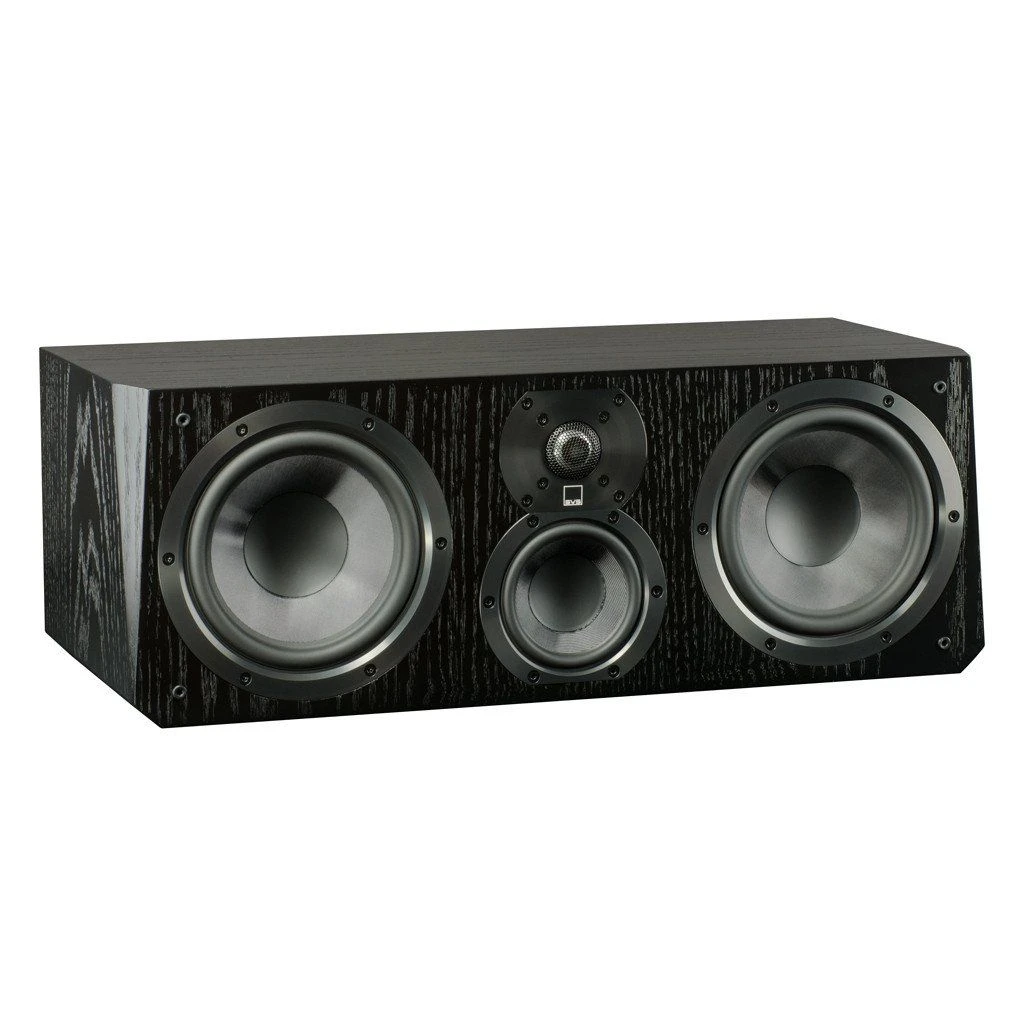

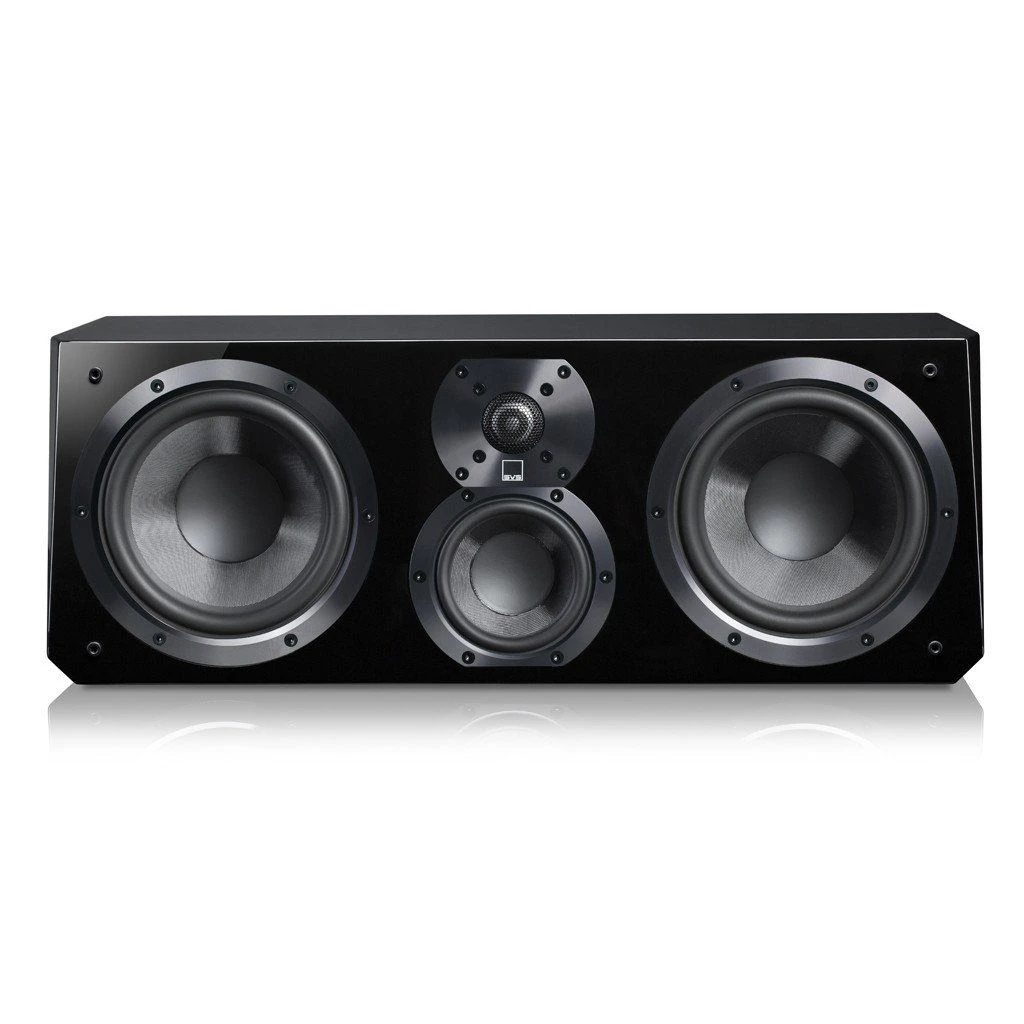

The proprietary SVS drivers utilize the finest materials and design features to ensure the highest sound quality and performance. The Ultra Center driver array features a 1″ aluminum dome tweeter, a 4″ mid-range driver, and dual 6.5″ woofers. The vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering for a smooth frequency response and excellent dialogue intelligibility at all listening positions.

The 1″ aluminum dome tweeter utilizes an FEA-optimized diffuser which delivers a very open ‘airy’ presentation and extremely unveiled highs.

The 4″ mid-range delivers amazing dialogue clarity and detail with powerful and room-filling presence and projection:

• A composite glass-fiber cone with excellent stiffness/mass ratio which improves sensitivity and maintains pistonic behavior well beyond the pass-band of the driver.
• A vented voice coil former to minimize air compression artifacts at high drive levels.
• An aluminum shorting ring to reduce gap inductance, lower distortion, and improve high frequency response.
• A cast aluminum basket to ensure precise alignment of critical components and enhance heat-sinking capacity.

The 6.5″ woofer delivers excellent lower mid-range clarity, along with remarkably powerful and deep bass response:

• A composite glass-fiber cone with excellent stiffness/mass ratio which improves sensitivity and maintains pistonic behavior well beyond the pass-band of the driver.
• A vented voice coil former to minimize air compression artifacts at high drive levels.
• An aluminum shorting ring to reduce gap inductance, lower distortion, and improve high frequency response.
• A cast aluminum basket to ensure precise alignment of critical components and enhance heat-sinking capacity.

SoundMatch Crossover Network – Intelligently Designed for Your Listening Room
The SoundMatch 3-way crossover features premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards to ensure pure signal transmission. Careful selection of the crossover frequency and slopes results in a smooth off-axis polar response, outstanding phase coherency and a stable sound stage.

FEATURES:

• Real black oak veneer and piano gloss black finish options.

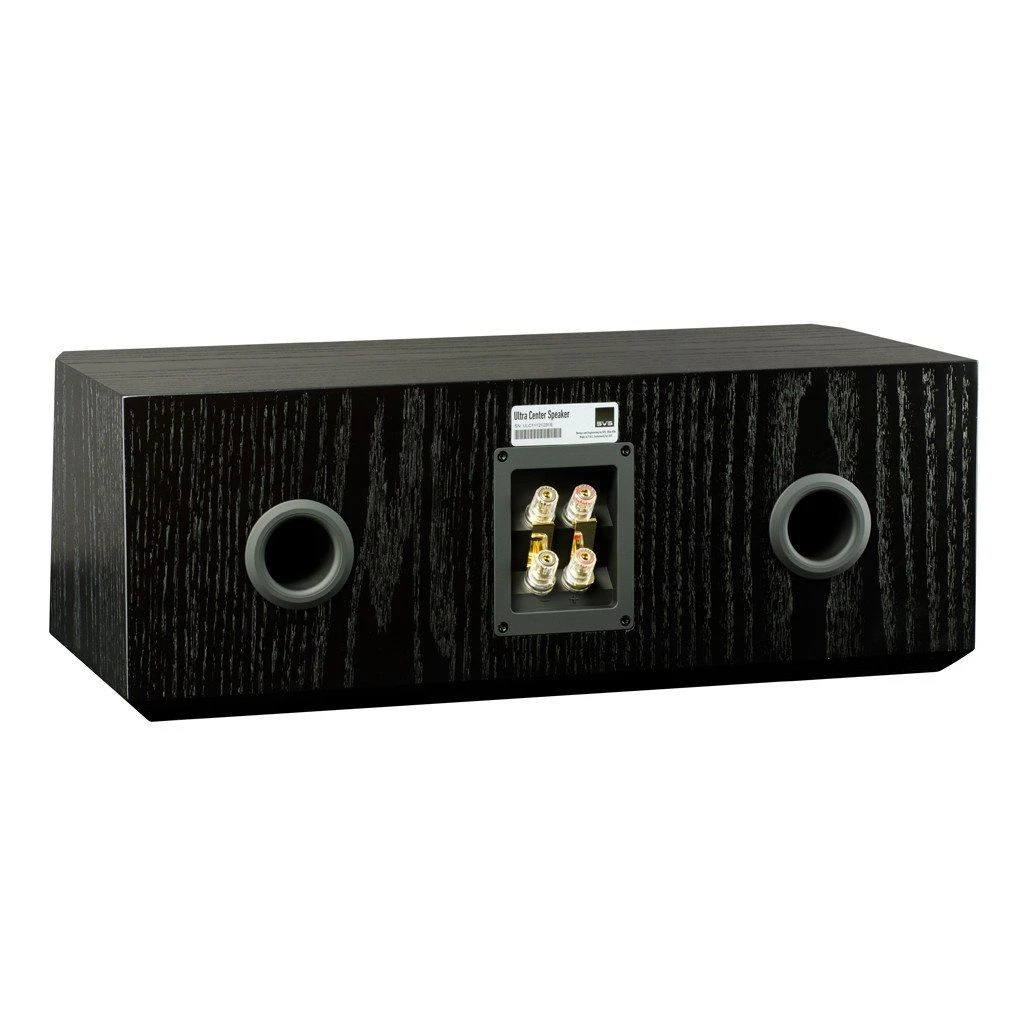

• Dual gold-plated 5-way binding posts
• Dual 1.7″ wide-flared rear-firing ports.

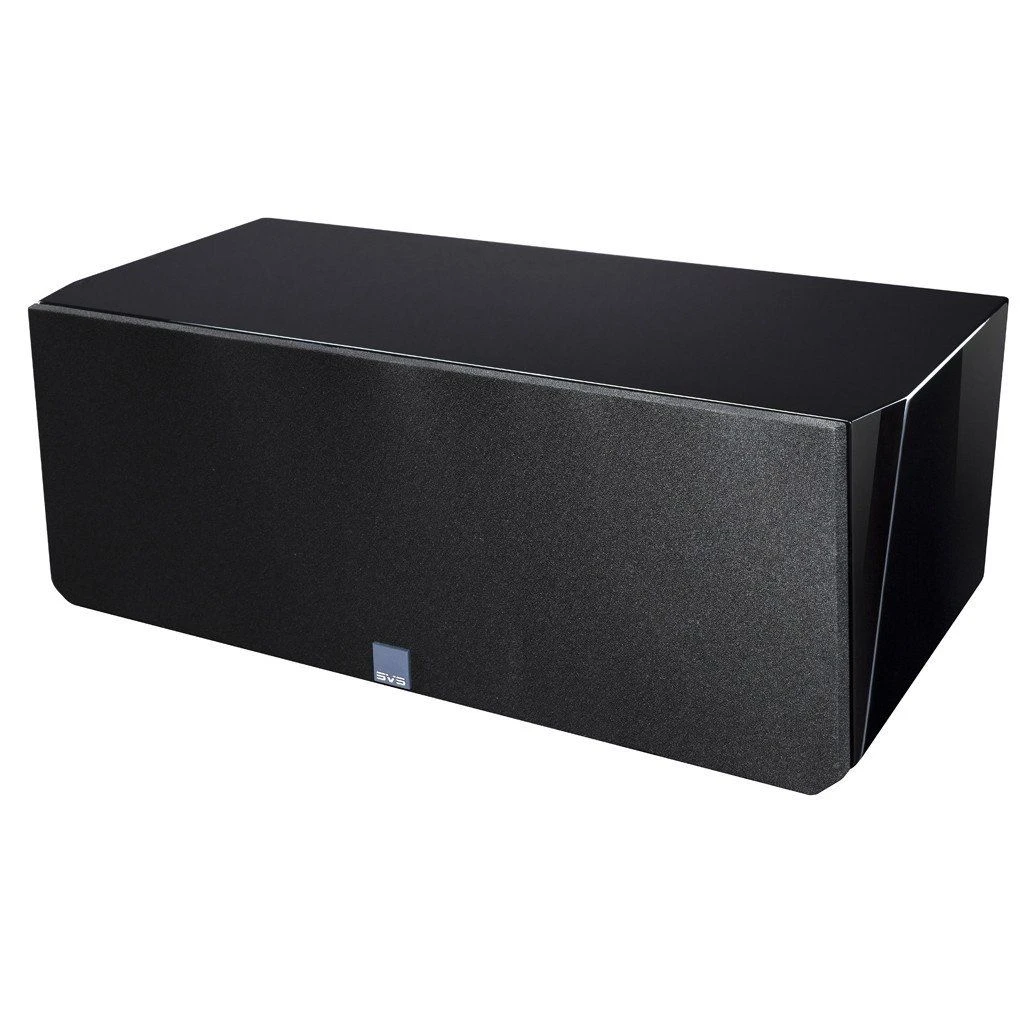

• Cloth grille with pin/cup retention system.
• Elastomer stick-on bumper feet (adds 3mm to height).
