Transformative Engineering – HDM-4×2 – HDMI Matrix Switcher

Transformative Engineering – HDM-4×2 – HDMI Matrix Switcher

Transformative Engineering’s compact Matrix HDMI Switcher is perfect for small systems, auxiliary viewing rooms, or any other application where a 4-Input, 2-Output Distribution System is required. Output #1 of this switcher incorporates a HDBase-T Transmitter for reliable transfer of the selected signal to the display. We include a matching HDBase-T Receiver, which like all our Extenders, is powered from the Transmitter. Output #2 is a standard HDMI connector, used for a local display.

Among the rich features of this product, Transformative Engineering includes Audio Take-Off for Output #2, Audio Return Channel (ARC) between Output #2 and Input #4, Bi-Directional IR for the HDBase-T pathway, IR control of the switcher (Remote included), as well as RS232 control of the switcher. TE provides discrete IR commands as well as RS232 protocols for operation. A miniature USB port provides the ability to update the switcher’s firmware, if necessary.

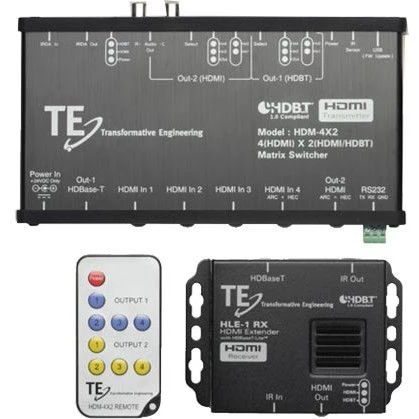

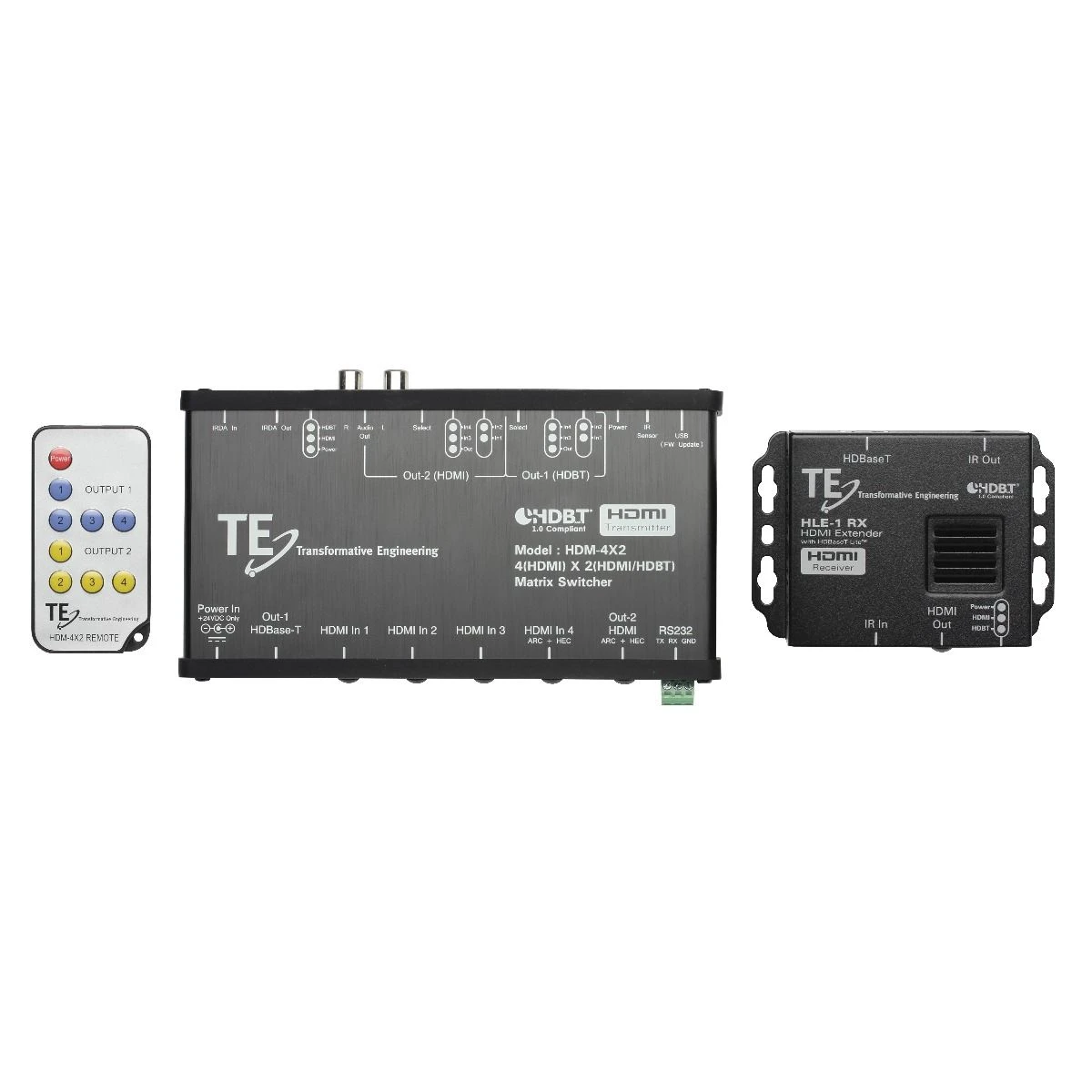

Included in kit:

(1) HDM-4×2 HDMI Transmitter Module
(1) HLE-1 RX HDMI Receiver Module
(1) 24V Power Supply
(1) SMA-1 IR Adapter Cable
(1) Installation Manual

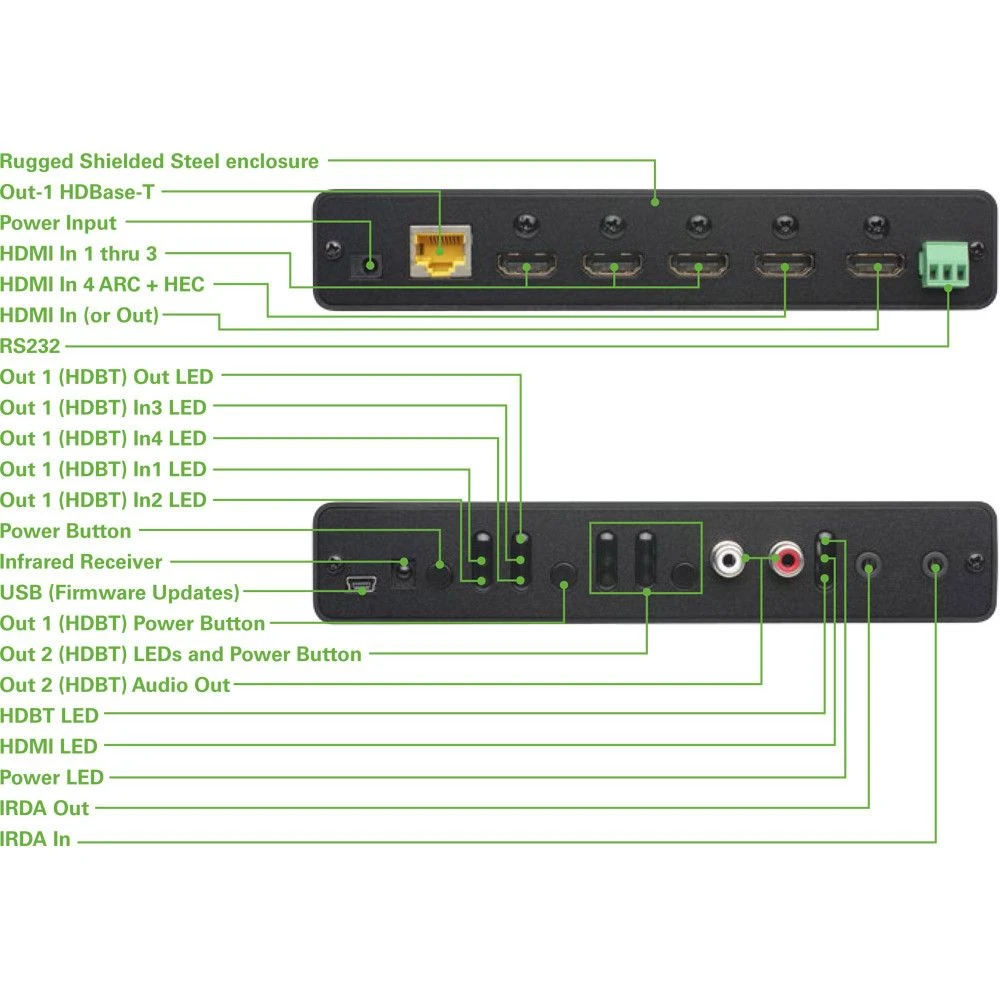

FEATURES:

• (4) HDMI Inputs (Version 2.0)
• (2) Independent Outputs
  • HDMI
  • HDBase-T – 70 Meters, CAT6 @ 1080p typical
• HDBase-T Receiver Included
• Output # 1 features IR Bi-Directional Pass-Thru with Power Option. We give you the choice of pure-pass IR or Powered Pickup System at either end. Compatible with industry standard products. Adapter included for non-standard configurations.
• Switcher provides power for all functions, including HDBase-T Receiver
• Audio Take-Off (Stereo) for Output #2
• ARC (Audio Return Channel) and HEC (Home Ethernet Connectivity) between Output #2 and Input #4
• Full remote control via IR (Remote Included) or RS232
• Powered by one 24V Power Supply (Provided)
• Diagnostic Indicator Lights for monitoring performance and operation
• Highest Quality Extruded Aluminum case for cooling, shielding, and safety
• Built to be rugged tough
• Three year warranty
• Built to exact standards in Taiwan
• Company is based in Massachusetts
