Transformative Engineering – HDU-1 – HDMI/VGA/USB Extender Kit

Transformative Engineering – HDU-1 – HDMI/VGA/USB Extender Kit

As the needs of Commercial and Educational Markets rely on the Professional Installer to provide simple, reliable solutions for their Conference Rooms, Huddle Spaces, and the changing classroom environment, Transformative Engineering is proud and excited to offer a comprehensive solution to the connectivity and automation needs of this segment. Their inspired answer allows for connection of an HDMI or VGA source, a synchronous USB device, Bi- Directional IR, and an auxiliary audio feed – all over a single Category cable. Only one power supply is needed for both Modules, and you may choose either side to connect it to. Transformative Engineering even provides power for an IR Pickup device (not included). Their highest quality video transmission system, HDBase- T, enables video resolutions up to 1080p and computer resolutions up to 1920 x 1200 – all uncompressed. The VGA Input is converted to HDMI with computer selected resolution.

Selection of input is automatically sensed and prioritizes HDMI unless the manual selection is activated. Auto selection is resumed upon next power- up or selected by the user. The Transmitter Unit fits in a double- gang electrical box and is fully enclosed in our shielded metal case for safety and code adherence. We provide both Black and White faceplates to match most décor. TE’s Compact Receiver Module fits behind your monitor or on top of your projector to provide a signal, control, and USB over a single Category wire up to a distance of 30 Meters (100 feet).

This system provides the functionality otherwise requiring multiple devices while offering operational simplicity and outstanding value to the final user. The Quality, Utility, Value and competitive advantage this makes available to the Professional Installer is representative of all Transformative Engineering products.

Included in Kit:

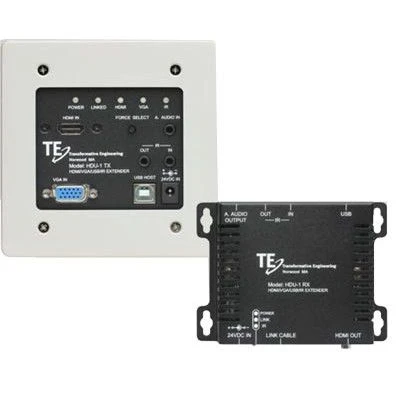

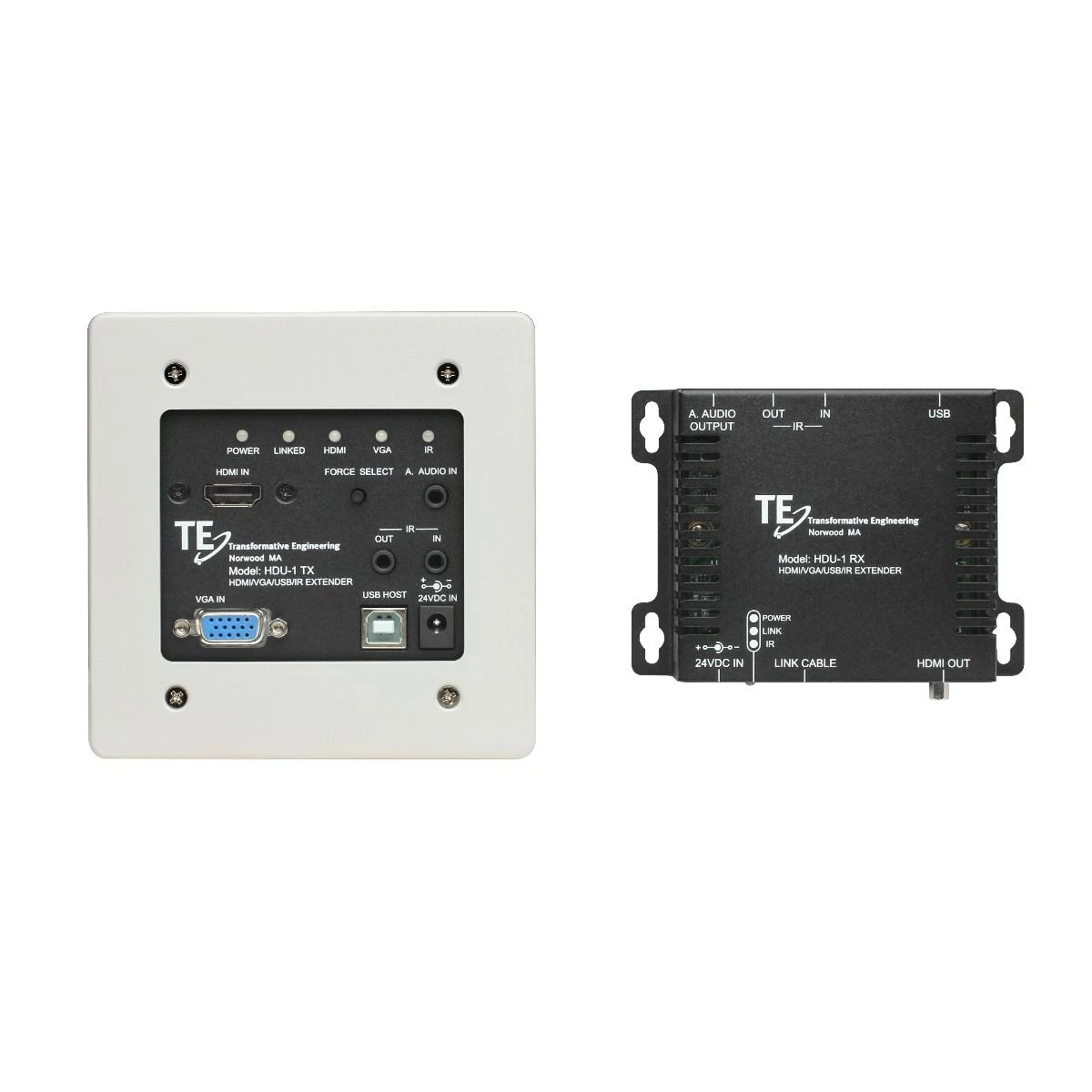

Tx and Rx units
White and Black custom wall plates
Mounting and plate screws
Power supply
SMA- 1 adapter.

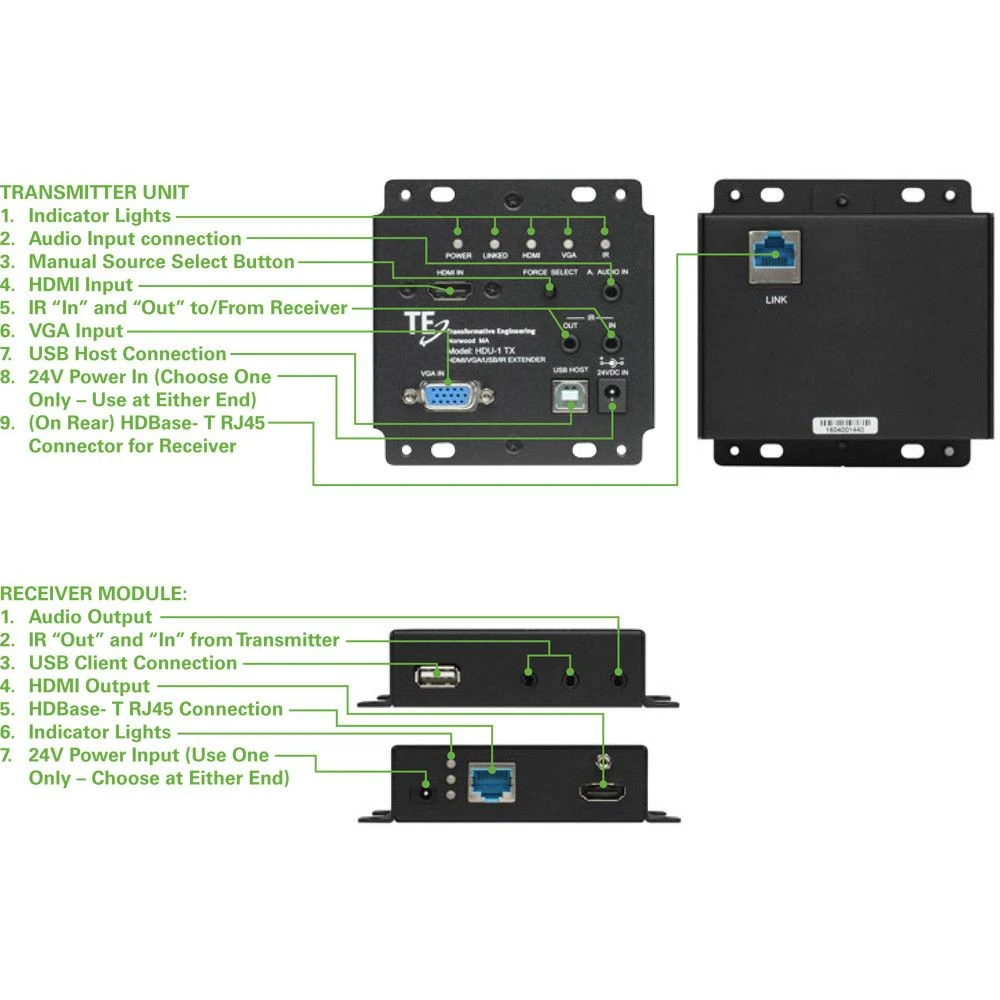

FEATURES:

• HDMI extender 30m @ 1080p over Cat6. 1920×1200/60Hz
• Max. Resolution for use with Cat 5e/6/6e/6a/7 UTP
• HDMI and VGA inputs w/ Auto switching (Priority HDMI)
• Force Selection button for manual switching
• HDMI Audio supports Dolby TrueHD, DTS-HD, and up to LPCM 7.1 @ 192KHz
• Analog L+R Audio (parallel signal path for use with VGA or HDMI)
• Dual IR pathways capable of powering a Xantech
• Compatible 12v IR pick up at Each end. Includes SMA- 1
• IR adapter for non- powered IR pass- thru applications such as a control system.
• Fully synchronous USB2.0 port will power a standard webcam and supports up to 1080p video.
• Tx unit sized to fit a standard 2- gang low voltage ring or electrical box.
• Fully enclosed design insures compliance in residential and commercial installs.
• Compact Rx fits easily behind a flatscreen or on top of a projector at just: 3” x 4” x 1” (5x4x1 including connected cables)

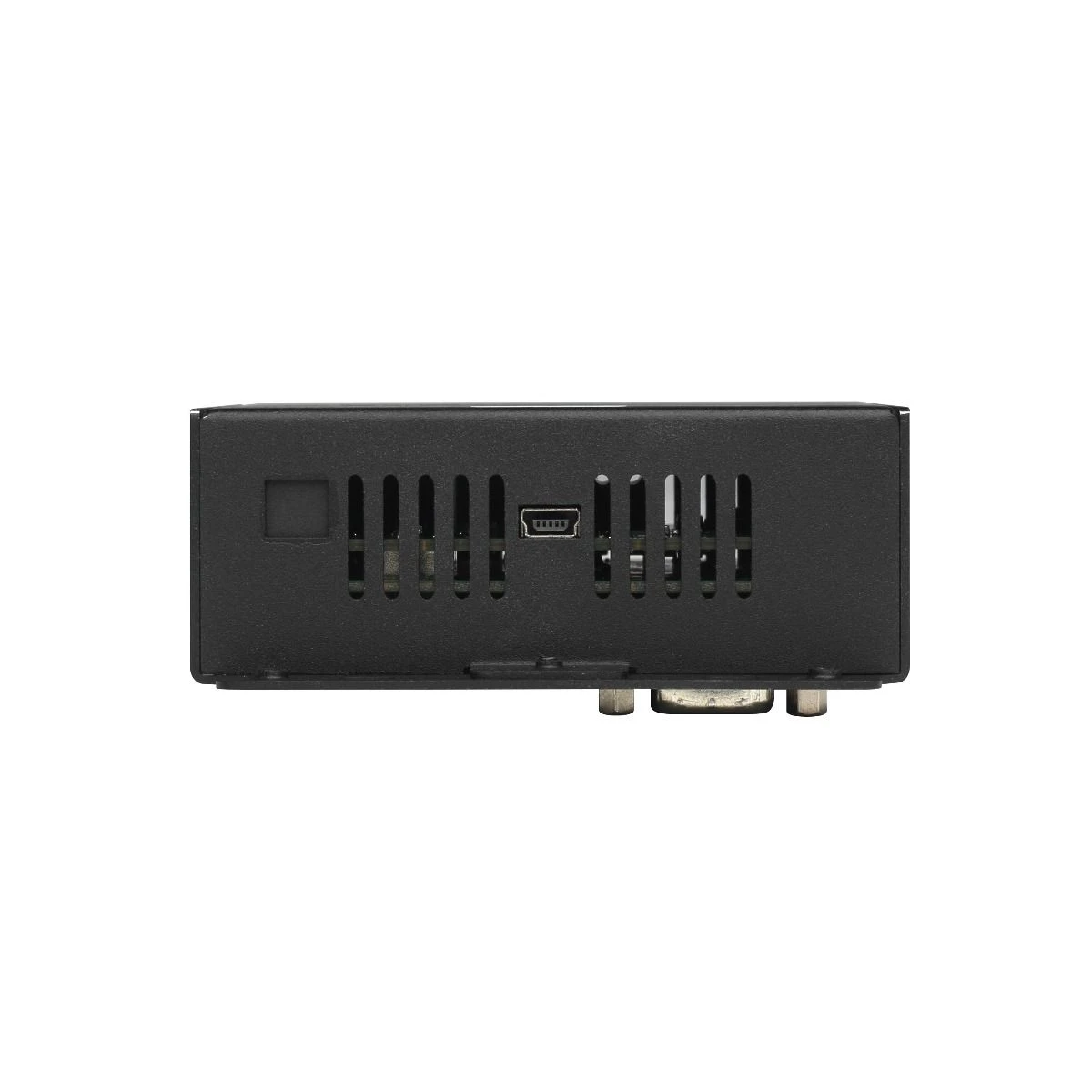

• USB Mini jack for future firmware updates
• (1) 24v power supply for use at Either Tx or Rx
• Built to be rugged tough
• Three year warranty
• Built to exact standards in Taiwan
• Company is based in Massachusetts
